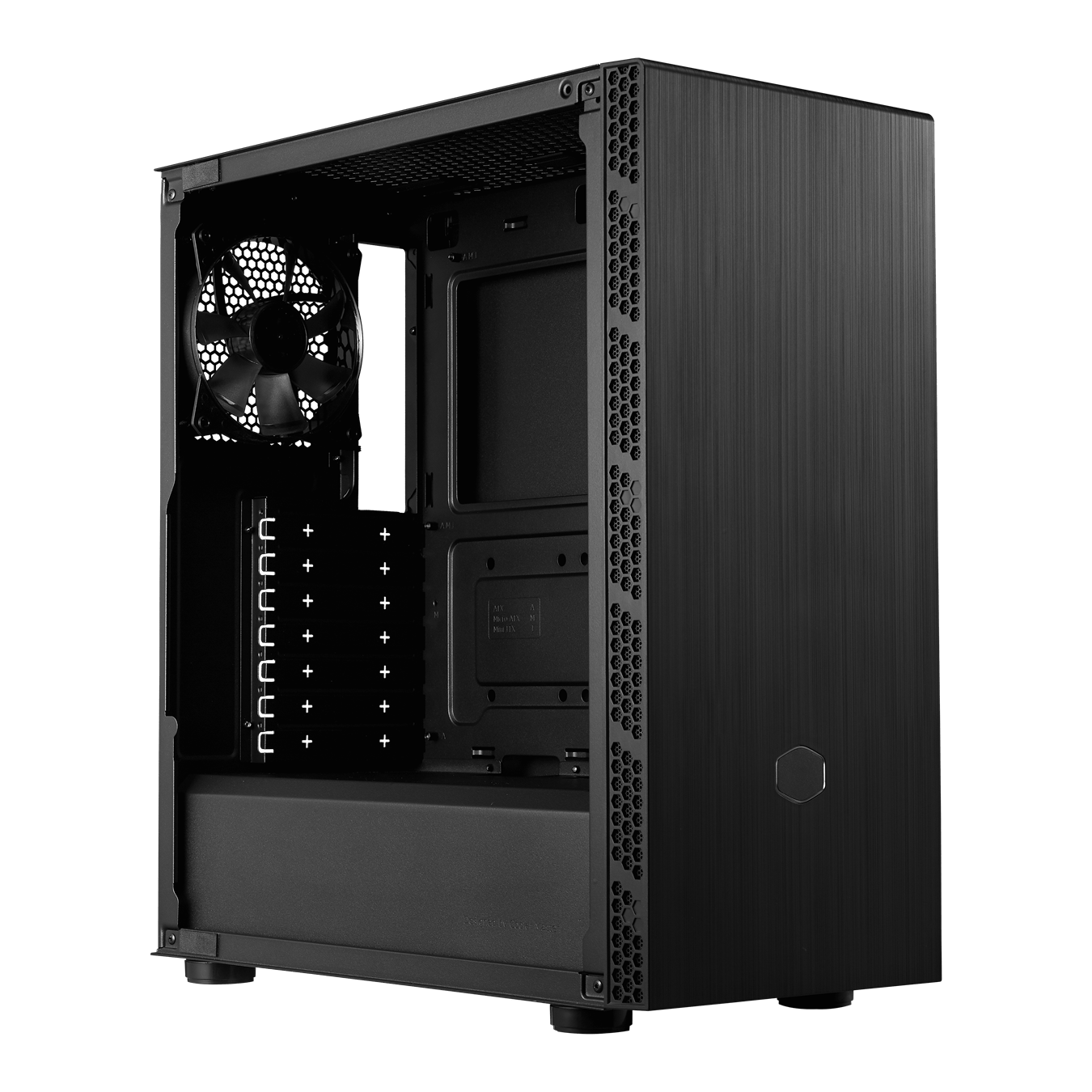

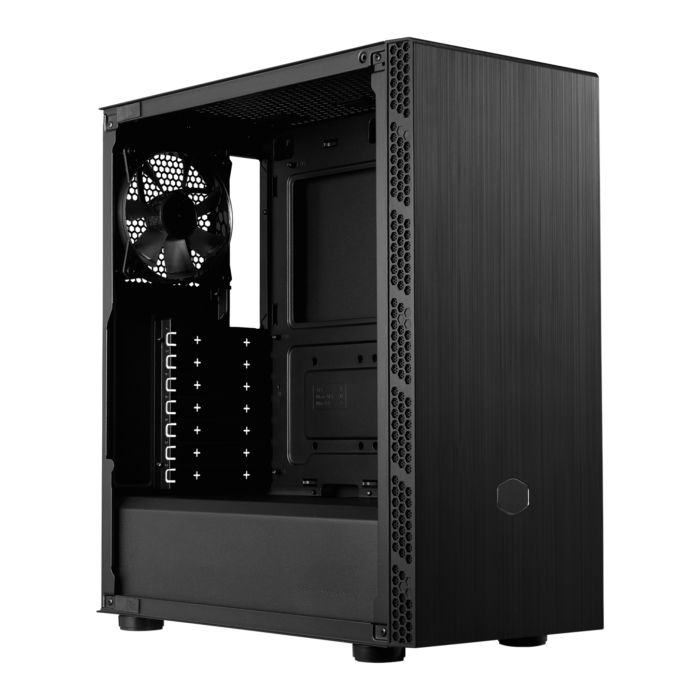

Cool Master MASTERBOX MB600L V2

Product Specifications

Model Number	MB600L2-KGNN-S00 (w/o ODD TG), MB600L2-KNNN-S00 (w/o ODD Steel), MB600L2-KG5N-S00 (w/ ODD TG), MB600L2-KN5N-S00 (w/ ODD Steel)
Series	MasterBox Series
Size	Mid Tower
Color(s)	Black
Materials	Steel, Plastic, Tempered Glass
Dimensions (L x W x H)	405.5x204x455.3mm (incl. Protrusions) (MB600L2-KNN-S00), 400x204x455.3mm (excl. Protrusions) (MB600L2-KNN-S00), 460.5x204x455.3mm (incl. Protrusions) (MB600L2-K5N-S00), 455x204x455.3mm (excl. Protrusions) (MB600L2-K5N-S00)
Volume	37.15L (MB600L2-KNN-S00) (exlc. Protrusions), 42.26L (MB600L2-K5N-S00) (exlc. Protrusions)
Motherboard Support	Mini ITX, Micro ATX, ATX
Expansion Slots	7
5.25″ Drive Bays	0 (MB600L2-KNN-S00), 1 (MB600L2-K5N-S00)
2.5″ / 3.5″ Drive Bays (Combo)	2
2.5″ Drive Bays	2
I/O Panel	2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic)
Pre-installed Fans – Top	N/A
Pre-installed Fans – Front	N/A
Pre-installed Fans – Rear	1x 120mm
Fan Support – Top	2x 120/140mm
Fan Support – Front	3x 120mm, 2x 140mm, 3x 120mm (remove ODD bracket) (MB600L2-K*5N-S00)
Fan Support – Rear	1x 120mm
Radiator Support – Top	120mm, 240mm, (RAM height limit 32mm; install RAM first, then install radiator)
Radiator Support – Front	120mm, 140mm, 240mm, 280mm, 360mm (remove & reinstall ODD bracket to mount 360mm radiator (MB600L2-K*5N-S00)
Radiator Support – Rear	120mm
Clearance – CPU Cooler	161mm
Clearance – PSU	160mm (MB600L2-KNN-S00), 180mm (MB600L2-K5N-S00)
Clearance – GFX	350mm (w/o front fans & radiator) (MB600L2-KNN-S00), 400mm (w/o front fans & radiator) (MB600L2-K5N-S00)
Cable Routing	18.5mm
Dust Filters	Front, Top, Bottom
Power Supply Support	Bottom Mount, ATX
Warranty	2 years
